Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Model NO.: DE-AP
Quality Warranty: 3-5 Years
OEM/ODM: Available for Solar Street Lamp Post
Light Source: LED Light
Lamp Body Material: Aluminum Alloy
Power Supply: DC
IP Rating: IP65
Trademark: DELIGHT SOLAR
Transport Package: Export Standard Carton with Foam Inside
Specification: mono/poly solar panel, battery hanging on the pole
Origin: China
HS Code: 7306309000
Model NO.: DE-AP
Quality Warranty: 3-5 Years
OEM/ODM: Available for Solar Street Lamp Post
Light Source: LED Light
Lamp Body Material: Aluminum Alloy
Power Supply: DC
IP Rating: IP65
Trademark: DELIGHT SOLAR
Transport Package: Export Standard Carton with Foam Inside
Specification: mono/poly solar panel, battery hanging on the pole
Origin: China
HS Code: 7306309000
hot-dip galvanized conical all in one solar street light pole

Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Our Difference
SATISFACTORY SERVICE
- 15 working days delivery
- 5 years warranty
- on-site installation instruction

ADVANCED LIGHTING TECHNOLOGY
- Design for lighting applications
- Dimming and operating profiles for adaptive lighting
- Superior LED luminaires

CUSTOM SOLUTION FOR YOUR APPLICATION
- Precision- engineered for your application
- Array for solar engines available for your application
- Aesthetic- design and value-built engine options



Production Descripion

Hot-DIP Galvanized Conical All in One Solar Street Light Pole

SYSTEM DATA
Material Q235, plastic coated on hot-dip galvanized steel pole
Mounting Height 2-30m above ground
Shape Round conical, Octagonal, Polygonal etc
Bracket Single or double brackets are in the shape and dimension as per customers requirement
Welding Welding confirms with international welding standard of CWB
Base Plate Base plate is square or round in shape with slotted holes for anchor bolt
Galvanizing Hot dip galvanization with thickness of 80-100µm average


Hot-DIP Galvanized Conical All in One Solar Street Light Pole
TECHNICAL SPECIFICATIONS
POLE Height Top Diameter Bottom Diameter Pole Thickness Base Plate
4M 70mm 130mm 2.75mm 260*260mm*S14
5M 60mm 140mm 3.0mm 260*260mm*S14
6M 60mm 145mm 3.0mm 280*280mm*S16
7M 70mm 180mm 3.5mm 300*300mm*S16
8M 80mm 170mm 3.75mm 320*320mm*S18
9M 100mm 200mm 4.0mm 350*350mm*S20
10M 100mm 205mm 4.0mm 350*350mm*S20
11M 100mm 205mm 4.0mm 400*400mm*S20
12M 100mm 220mm 5.0mm 400*400mm*S20

Specifications subject to local environmental conditions.
Specifications maybe subject to change.


Package for Solar Street Light
Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Package: Export standard carton with foam inside for tough handling and long-distance ocean transport


Packing 6M 30W 8M 60W 10M 100W
20ft 70 units 0 0
40ft 130 units 80 units 50 units

Production process
Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Payment & Delivery
Payment terms T/T

EXW 30% In advance, 70% before delivery

FOB
CFR/C&F 30% In advance, 70% against copy of B/L
CIF
L/C Total amount above USD50,000, we accept L/C at sight
West Union Total amount less than USD5,000
PayPal
Delivery time 15-20 working days after receiving down payment for one container


FAQ:
Q1. Can I have a sample order for lamp post?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than one container

Q3. Do you have any MOQ limit for solar led street light lamp post order?
A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.

Q5. How to proceed an order for solar led street light lamp post?
A: Firstly let us know your requirements or application.
Secondly We provide solution according to local sun weather conditions.
Thirdly customer confirms the samples and formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.


Hot-DIP Galvanized Conical All in One Solar Street Light Pole hot-dip galvanized conical all in one solar street light pole

Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Our Difference
SATISFACTORY SERVICE
- 15 working days delivery
- 5 years warranty
- on-site installation instruction

ADVANCED LIGHTING TECHNOLOGY
- Design for lighting applications
- Dimming and operating profiles for adaptive lighting
- Superior LED luminaires

CUSTOM SOLUTION FOR YOUR APPLICATION
- Precision- engineered for your application
- Array for solar engines available for your application
- Aesthetic- design and value-built engine options



Production Descripion

Hot-DIP Galvanized Conical All in One Solar Street Light Pole

SYSTEM DATA
Material Q235, plastic coated on hot-dip galvanized steel pole
Mounting Height 2-30m above ground
Shape Round conical, Octagonal, Polygonal etc
Bracket Single or double brackets are in the shape and dimension as per customers requirement
Welding Welding confirms with international welding standard of CWB
Base Plate Base plate is square or round in shape with slotted holes for anchor bolt
Galvanizing Hot dip galvanization with thickness of 80-100µm average


Hot-DIP Galvanized Conical All in One Solar Street Light Pole
TECHNICAL SPECIFICATIONS
POLE Height Top Diameter Bottom Diameter Pole Thickness Base Plate
4M 70mm 130mm 2.75mm 260*260mm*S14
5M 60mm 140mm 3.0mm 260*260mm*S14
6M 60mm 145mm 3.0mm 280*280mm*S16
7M 70mm 180mm 3.5mm 300*300mm*S16
8M 80mm 170mm 3.75mm 320*320mm*S18
9M 100mm 200mm 4.0mm 350*350mm*S20
10M 100mm 205mm 4.0mm 350*350mm*S20
11M 100mm 205mm 4.0mm 400*400mm*S20
12M 100mm 220mm 5.0mm 400*400mm*S20

Specifications subject to local environmental conditions.
Specifications maybe subject to change.


Package for Solar Street Light
Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Package: Export standard carton with foam inside for tough handling and long-distance ocean transport


Packing 6M 30W 8M 60W 10M 100W
20ft 70 units 0 0
40ft 130 units 80 units 50 units

Production process
Hot-DIP Galvanized Conical All in One Solar Street Light Pole

Payment & Delivery
Payment terms T/T

EXW 30% In advance, 70% before delivery

FOB
CFR/C&F 30% In advance, 70% against copy of B/L
CIF
L/C Total amount above USD50,000, we accept L/C at sight
West Union Total amount less than USD5,000
PayPal
Delivery time 15-20 working days after receiving down payment for one container


FAQ:
Q1. Can I have a sample order for lamp post?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than one container

Q3. Do you have any MOQ limit for solar led street light lamp post order?
A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.

Q5. How to proceed an order for solar led street light lamp post?
A: Firstly let us know your requirements or application.
Secondly We provide solution according to local sun weather conditions.
Thirdly customer confirms the samples and formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.


Hot-DIP Galvanized Conical All in One Solar Street Light Pole

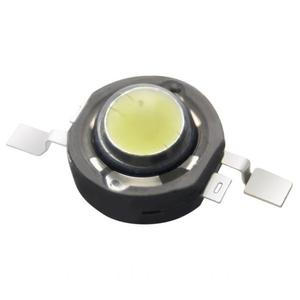

High Power LED Light is a light emitting diode with a high rated operating current. General LED power is generally 0.05W, the working current is 20mA, and High Power LED can reach 1W, 2W, or even tens of watts.
High Power Led as a light source has the advantages of small size, low power consumption, small heat, long life, fast response, low voltage, good weather resistance, good orientation and so on.

High Power LED Light Features:

power led

High Power LED Light

1 service life: high power LED life up to 30000 hours or more
2 energy saving than the high-pressure sodium lamp electricity above 70%
3 green. High power LED does not contain lead, mercury and other pollution elements, no pollution to the environment
4 safety: impact resistance, strong earthquake resistance, LED light in the visible range, no ultraviolet (UV) and infrared (IR) radiation.
Available range:
High power LED has wide application prospect in special industries, such as oil field, petrochemical industry, railway, mine, army and so on.

High Power LED Light
