Product Description

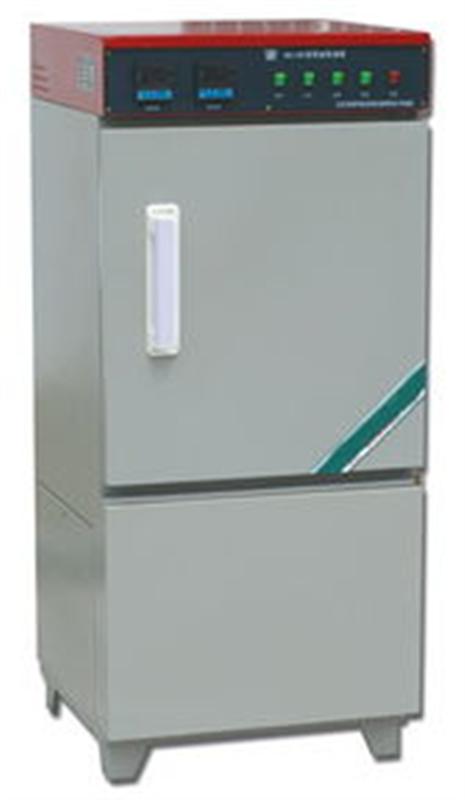

The Temperature and Humidity Test Chamber is a versatile device designed for testing the performance of small electrical appliances, instruments, materials, and components under various environmental conditions. It is also ideal for aging tests and damp heat testing.

Key Features

This test chamber is engineered with an optimized structure and advanced control system, ensuring stable and accurate temperature and humidity regulation. Its user-friendly design makes it easy to operate, while its high precision and safety features make it an excellent choice for constant temperature and humidity testing in laboratories and industrial settings.

Operating Instructions

1. Check the water level in the water tank, clean the storage bottle, fill it with distilled water, and connect the rubber tube to the faucet. Using distilled water helps prevent scale buildup in the humidifier.
2. Set the desired temperature or temperature-humidity level and turn on the power supply.
3. Loosen the dry bulb temperature adjustment cap. The set temperature should be slightly higher than the required test value.
4. Use the conductive meter as a reference, but note that the actual temperature should be measured using the dry bulb thermometer.
5. Turn the power selector switch to "2" to start heating. Wait until the internal temperature reaches the desired level, then switch to "1" to minimize temperature fluctuations during constant temperature operation.
6. Adjust the water tank temperature to control the humidity level. Typically, the water tank temperature should be set 1–2°C lower than the working chamber temperature.
7. Once the chamber reaches the desired temperature and humidity, place the test sample inside for maintenance or testing.
8. After use, disconnect the power, remove the hose from the chamber, and drain any remaining water.

Whether you're conducting reliability testing, quality assurance checks, or material analysis, this temperature and humidity test chamber provides a controlled environment to ensure accurate and consistent results. Its durability, ease of use, and precision make it a valuable tool for engineers, researchers, and quality control professionals.
